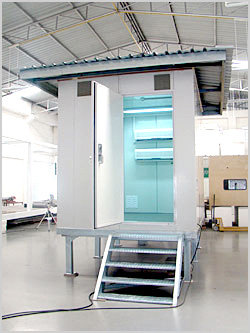

Telecom Shelter Panel

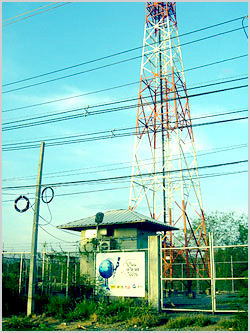

Telecom shelters are as important as highly sensitive Telecom equipment accommodating inside. We put high level of research, planning and know how into designing these shelters. We provide roof top and green field shelters or cabinets for mobile base stations and telecommunication applications. Typically a normal telecom shelter will be a fully customized and will be designed and made as per customer's specifications, while optional features can be added as per requirement. SKF Telecom Shelter are efficiently designed considering heat generated by the enclosed equipment and environment temperature variation in order to minimize use of air conditioner, low running cost and fault free long life of the equipments.

Features

  • Structural Insulated Panel (SIP)
  • Prepainted Al-Zn alloy coated steel sheet skin
  • Prefab Hot Dip Galvanized base frame
  • Weather proof, 3-point lock insulated door
  • Insulated PU foam in between weather proof viva board floor
  • Hot Dip Galvanized step ladder
  • Modular design & flat packed delivery
  • Self Temperature Conditioning System

Technical Specification

Dimension Custom-made
Wall & ceiling Panel Thickness 50 mm.
Insulation Polyurethane Foam with density 40 kg/m3
Skin material 0.5mm prepainted Al-Zn alloy coated steel sheet
Panel joint Combination tongue & groove system.
Floor base frame Hot Dip galvanized steel
Floor panel Insulated PUF in between viva board
Floor finishing (option) Vinyl anti-static floor covering
Door Weather proof, PUF insulation
Door Lock 3-points lock.
Roof 0.5mm prepainted Al-Zn alloy coated steel sheet
Environment -30~70 deg. C ambient Temperature with humidity 10% to 95% at 30deg. C, Can with stand wind upto 180km/h
Applicable standard IP 55
